A swing set bracket kit lets you build a frame from lumber you buy locally instead of shipping a whole structure to your door, and it is the reason a home built swing beam can be exactly as long, as tall and as heavy as your yard needs. The catch is that a bracket kit only supplies the joints. Span, timber size, hardware and anchoring are yours to get right.
This guide explains the bracket types, which lumber dimension each one is cut for, and what to check before ordering. Once the frame stands, holding it down is a separate job covered in our swing set anchor kit guide.
This article contains affiliate links. If you buy through them, we may earn a commission at no extra cost to you. Learn more.
Quick Answer
Which swing set bracket kit should you buy?
- Start from the lumber you intend to use. Brackets are cut for a specific nominal size, most commonly 4×4 legs with a 4×4 or 4×6 top beam, and they do not adapt.
- An A-frame bracket at each end is the standard home build. A single corner bracket set suits a lean to beam against an existing structure, which is a different job.
- Look for steel thickness, a powder coat or galvanized finish, and predrilled holes sized for structural bolts rather than lag screws alone.
- The kit gives you joints, not a design. Keep the beam span within what your timber size supports, and anchor the legs below ground level as CPSC guidance for home playgrounds advises.
Bracket Types and What They Build
Bracket kits are not interchangeable. Each type creates one specific joint, and mixing them without thinking through the geometry is how a home built frame ends up racking. This table sets out the common ones.
| Bracket type | What it builds | Typical lumber | Watch out for |
|---|---|---|---|

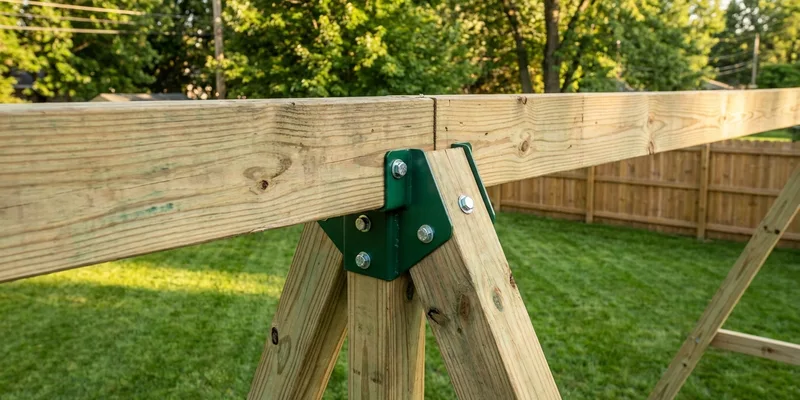

| A-frame bracket, pair | Two splayed legs joined to the top beam at each end | 4×4 legs, 4×4 or 4×6 beam | Leg angle is fixed by the bracket, so the height follows from it |
| Single beam end bracket | One vertical post joined to the beam | 4×4 throughout | Needs bracing or a very deep post footing to resist sway |
| Corner or lean to bracket | A beam tied into an existing wall, deck or frame | 4×4 beam | Only as strong as the structure you attach it to |
| Monkey bar bracket set | An overhead ladder run between two beams | Beam sized for the span | The shifting load calls for a deeper beam than swings alone |
| Swing hanger hardware | The rotating joint each swing hangs from | Bolts through the beam | Bare hooks wear the beam; look for a bearing or bushing |
If your plan includes an overhead ladder run, the timber question changes with it, and our guide to a wooden swing set with monkey bars covers beam depth for that span.
Matching the Bracket to Your Lumber
Brackets are sized to nominal lumber dimensions, which are not the actual measurements of the board. A nominal 4×4 measures 3.5 inches (8.9 cm) on each face once dressed, and that dressed size is what the bracket socket is cut for. Buying rough sawn or oversized timber for a bracket cut for dressed lumber is the single most common ordering error.
The beam is the piece worth spending on. A deeper beam resists sag across the span, and sag is what shows up first on a home built frame carrying two or three swings. If the kit states a maximum span, treat that as a limit rather than a suggestion.
Wood Species and Treatment
Cedar and redwood resist rot naturally, while treated southern yellow pine and fir rely on the treatment. Whichever you pick, note that some treated lumber is corrosive to plain steel fasteners, so use the hardware the bracket manufacturer specifies rather than whatever is in the workshop drawer.
What to Check Before Ordering
Four things separate a bracket kit that lasts from one that flexes: steel gauge, finish, fastener specification and what is actually in the box. Kits vary a great deal on the last point, and a kit that excludes bolts adds a hardware store trip you were not expecting.
Read the stated capacity too, and read what it applies to. A stated load rating may cover the bracket itself while assuming a particular timber size, span and number of swings, so the number only means something alongside the build it describes.
Finish and Corrosion
A powder coated or hot dip galvanized bracket holds up outdoors far better than a painted one, and the joint between steel and timber is exactly where water sits. Surface rust bleeding down a post within the first season is the usual sign that the finish was cosmetic.
Our Top Picks for Bracket Kits
How we chose: we compared widely available bracket kits on steel thickness, finish, the hardware included, the lumber dimensions they are cut for, and how consistently owners report a square, rigid frame after assembly. Selections lean on manufacturer specifications and recurring themes in customer reviews rather than any hands-on trial of our own.
🏆 Best Overall
A heavy duty A-frame bracket kit cut for 4×4 legs and a 4×6 beam, the configuration that supports the longest home built span without visible sag.
🔩 Best Swing Hardware
Heavy duty swing hangers with a sealed bearing, bolted through the beam so the hanger wears rather than the timber.
🐒 Best for Adding Bars
A monkey bar bracket and rung set for a home built frame, sized so the ladder run stays within the beam’s span.
Picks by Situation: Small Builds and Existing Structures
Two builds fall outside the standard A-frame: a compact frame for one or two swings in a small yard, and a beam tied into a wall, a deck or an existing playset instead of standing on its own legs.
📏 Best for a Compact Build
A lighter bracket kit for a shorter beam and a single swing position, which suits a narrow strip where a full A-frame will not fit.
🏠 Best for Tying Into a Structure
A corner bracket set for joining a swing beam to an existing frame or a solid wall, for yards with no room for a second set of legs.
Building a Frame That Stays Square
Assemble on level ground and check the frame for square before you tighten everything, because a bracket built frame locks in whatever geometry it was bolted up in. Our guide on leveling ground for a playset covers preparing the base without excavating half the yard.
Use structural bolts with washers on both faces where the kit calls for them. Lag screws into end grain, or bolts without washers biting into softwood, are the two shortcuts that show up later as elongated holes and a beam that has started to rotate.
Then Anchor It
A home built frame is not exempt from anchoring. The CPSC Outdoor Home Playground Safety Handbook advises anchoring equipment securely with anchoring devices installed below ground level, which keeps the legs from walking and keeps hardware out of the landing area.
Common Mistakes to Avoid
- Ordering brackets before deciding the lumber size. Brackets are cut for a nominal dimension and do not adapt to another.
- Exceeding the stated maximum span. Sag in a home built beam is a design decision made at ordering, not a defect that appears later.
- Substituting fasteners. Some treated lumber corrodes plain steel, and the specified hardware exists for a reason.
- Hanging swings from bare hooks. Without a bearing or bushing, the hardware saws into the beam over a season of use.
- Skipping anchors on a heavy wooden frame. Mass slows the walking; it does not stop it.
Frequently Asked Questions
What is a swing set bracket kit? It is a set of steel joints that turn dimensional lumber into a swing frame. The kit supplies the corners and, on some kits, the fasteners; the timber, span and anchoring are your responsibility.
What size lumber do swing set brackets take? Most are cut for nominal 4×4 legs with a 4×4 or 4×6 top beam. A nominal 4×4 measures 3.5 inches (8.9 cm) across a dressed face, and the bracket socket is sized for that dressed dimension.
How long a beam can a bracket kit support? Only as long as the kit and the timber size allow, and the manufacturer states that limit. Treat the stated maximum span as a limit rather than a target, since sag appears as the span grows.
Do bracket kits include the bolts? Some do and some do not, and this varies more than buyers expect. Check the contents list before ordering so the build does not stop halfway.
Can you add monkey bars to a bracket built frame? Yes, with a monkey bar bracket and rung set, provided the beam is deep enough for the unsupported span. An overhead ladder applies a shifting load that swings alone do not.
Do you still need to anchor a home built swing set? Yes. CPSC guidance for home playgrounds advises anchoring equipment securely with anchoring devices installed below ground level, whatever the frame is made of.
Are galvanized or powder coated brackets better? Both hold up outdoors far better than paint. What matters most is that the finish is a real coating rather than a cosmetic one, since water collects at the steel to timber joint.
The Bottom Line
Choose the bracket kit after you choose the lumber, not before. A-frame brackets cut for 4×4 legs and a deeper beam suit most home builds, swing hangers should carry a bearing rather than a bare hook, and the stated maximum span is a limit. Build square on level ground, use the specified fasteners, and anchor the legs below ground level.
